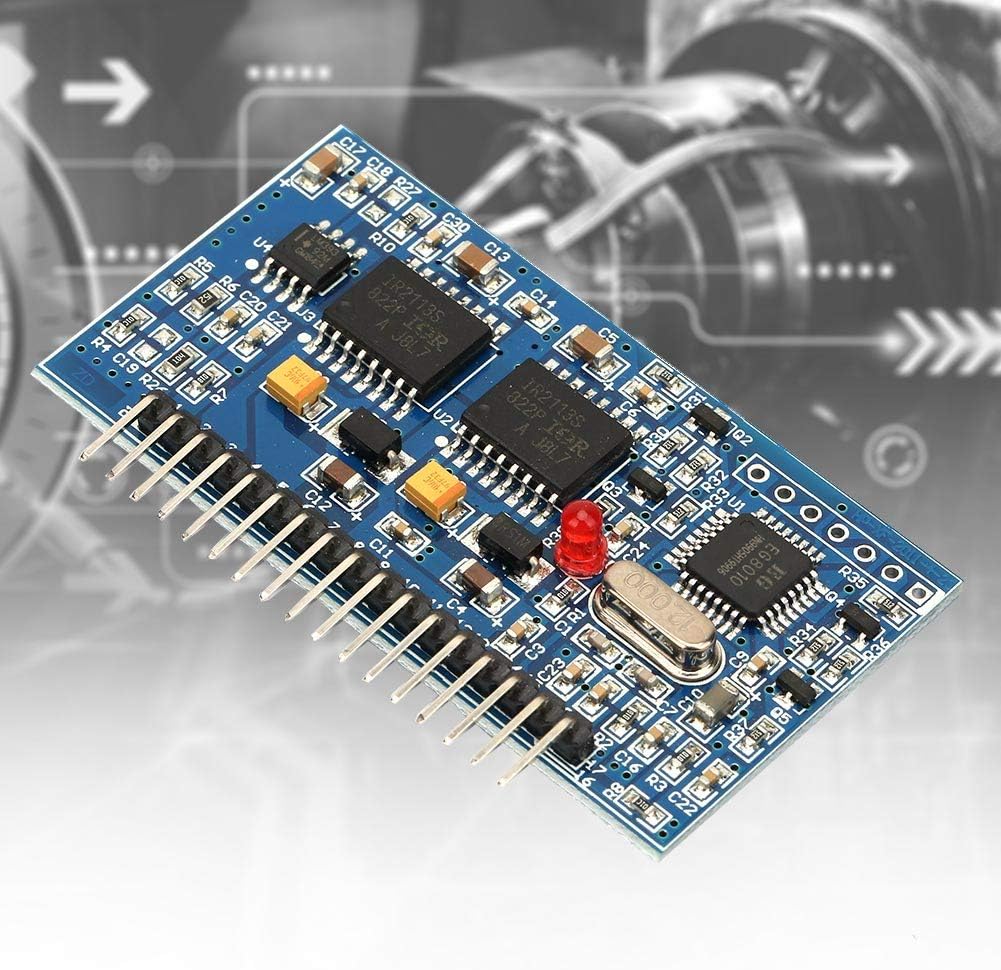

Walfront Pure Sine Driver Inverter 5V, Inverter Driver Board Module EGS002 EG8010 IR2110 23.4KHZ PWM Carrier Frequency
US$3.20
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by verona.spaziopalin.it
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
US$3.20
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by verona.spaziopalin.it
Free 30-day returns Details
Product details
| Management number | 237514234 | Release Date | 2026/07/10 | List Price | US$3.20 | Model Number | 237514234 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- EG8010 is a digital, fully functional pure sine inverter generator chip with dead zone control. It is applied to DC-DC-AC two-stage power conversion architecture or DC-AC single-stage power frequency transformer boost converter. Architecture, external 12MHz crystal oscillator, can realize pure sine 50Hz or 60Hz inverter chip with high precision, distortion and harmonics.
- The chip adopts CMOS technology and integrates SPWM sine generator, dead time control circuit, amplitude factor multiplier, circuit, circuit, RS232 serial communication interface and 12832 serial LCD driver module.
- Pure sine inverter driver board EGS002 EG8010 IR2110 driver module. Unipolar and bipolar modulation. Real-time processing of voltage, current and temperature feedback.
- With dead zone control, the pin sets 4 dead time: 300nS dead time 500nS dead time 1.0uS dead time 1.5uS dead time. Pin setting mode 1S response time.
- Serial communication sets output voltage, frequency and other parameters. The external serial port 12832 liquid crystal display module displays the voltage, frequency, temperature and current of the inverter.
| ASIN | B07TV3BQNJ |
|---|---|
| Brand | Walfront |
| Color | Blue |
| Frequency | 23.4 KHz |
| Model Name | EG8010 |
| Unit Count | 1.0 Count |
| Item Weight | 0.01 Kilograms |
| Display Type | LCD |
| Manufacturer | Walfront |
| Model Number | EG8010 |
| Power Source | Battery Powered |
| BuiltIn Media | Module |
| Mfr Part Number | Walfrontmrh2npeb0t |
| Antenna Location | It is applied to DC-DC-AC two-stage power conversion architecture or DC-AC single-stage power frequency transformer boost converter |
| Electrical Output Waveform | Pure Sine Wave |
